NURBS Wireframe Geometry Grid CAD File - Professional Necklaces CAD Design
SKU: JDS-NCK-010

Design Gallery Views

NURBS Wireframe Geometry Grid CAD File perspective render view 1
NURBS Wireframe Geometry Grid CAD File perspective render view 2
Watertight STL Verified
Instant 980GB Access
Pre-Cut Gem Seats
Commercial Rights
Luxury Jewelry CAD Collection

NURBS Wireframe Geometry Grid CAD File

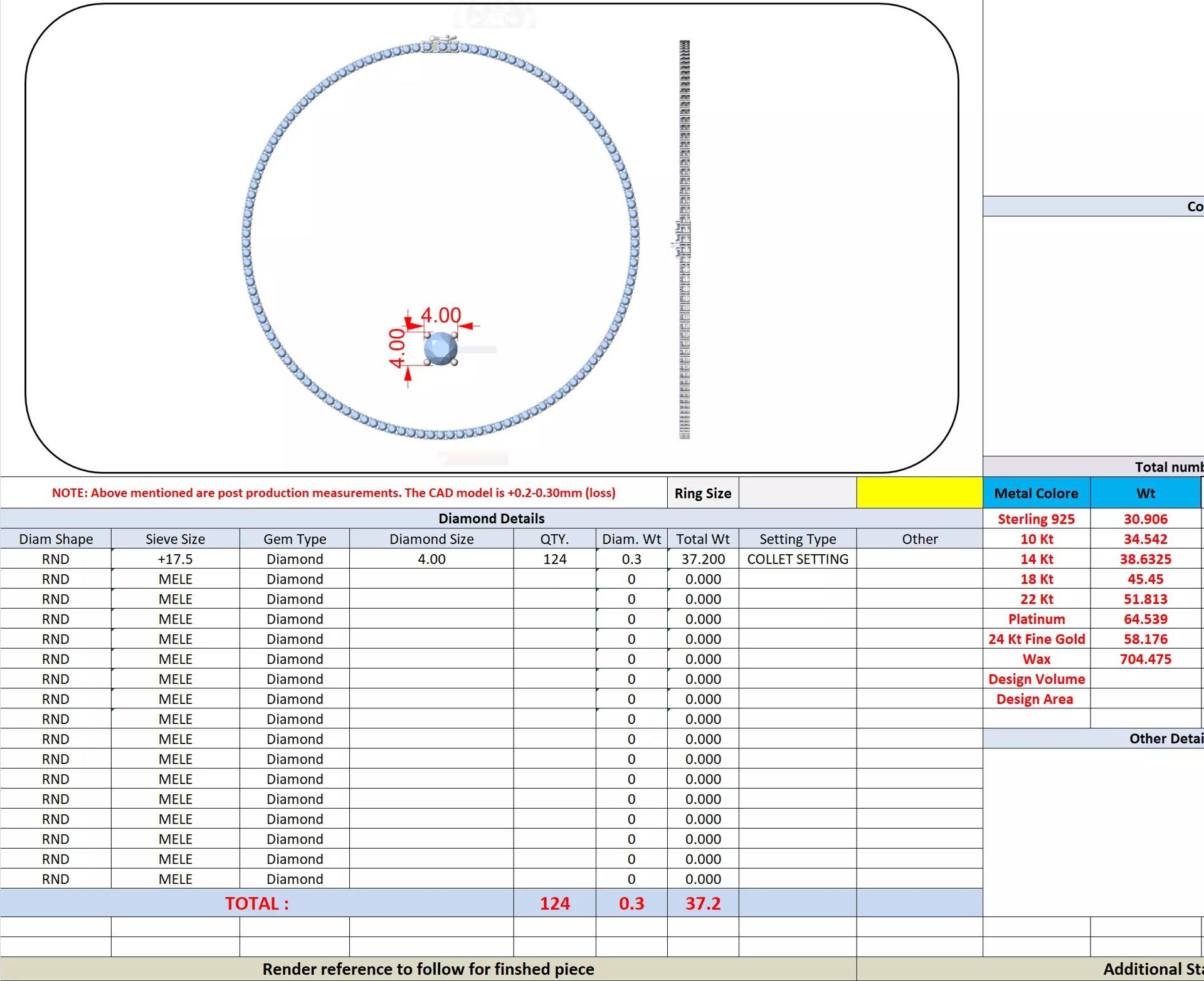

Technical manufacturing blueprint for a round-stone tennis necklace — stone schedule, setting dimensions and metal weights.

Technical Specifications
File Size:91.8 MB
Polygon Density:172,400 Quads
Engineering Tolerances:+0.20–0.30 mm finishing allowance
Gemstone Details:124 × 4.00 mm round (37.2 ct)

Pre-Calculated Metal Weights

14K Gold
38.63g
18K Gold
45.45g
Platinum
64.54g
Silver
30.91g

Compatible Software:

Rhino 3DMatrixGoldBlenderZBrush

Included Formats:

3DMSTLPNGOBJ

This jewelry CAD design is available for workflows using professional 3D modeling software, and is part of our full jewelry CAD library.

Get Access to This Design & 5,000+ More — €79

Instant Google Drive download link delivered after payment.

Design Overview & Manufacturing Notes

Technical manufacturing blueprint for a riviera-style tennis necklace, for jewelry CAD modelers. The sheet shows the full necklace layout, side profile and a single setting detail (4.00 × 4.00 mm), a diamond schedule of 124 round 4.00 mm stones in collet settings — 37.2 ct in total — and estimated metal weights from sterling silver to platinum. Measurements are post-production; the CAD model carries a +0.20–0.30 mm allowance for finishing loss.
