CAD Surface Model Blueprint 3DM File - Professional Bracelets CAD Design
SKU: JDS-BRC-009

Design Gallery Views

CAD Surface Model Blueprint 3DM File perspective render view 1

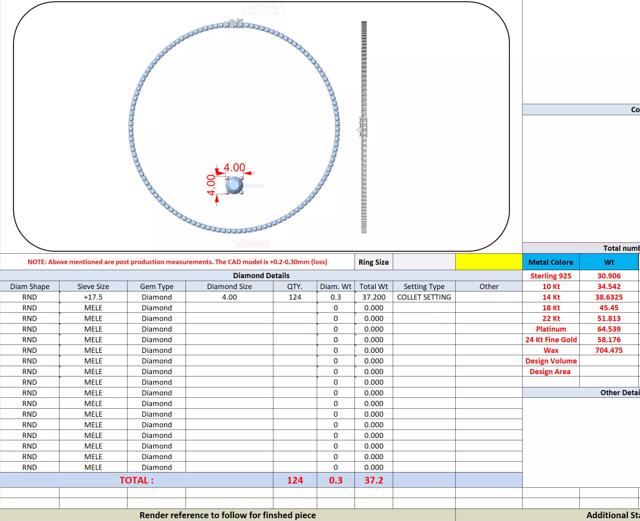

CAD Surface Model Blueprint 3DM File perspective render view 2
Watertight STL Verified
Instant 980GB Access
Pre-Cut Gem Seats
Commercial Rights
Diamond Jewelry CAD Collection

CAD Surface Model Blueprint 3DM File

Technical manufacturing blueprint for an 8-inch emerald-cut line bracelet — link dimensions, stone schedule and metal weights.

Technical Specifications
File Size:82.4 MB
Polygon Density:154,200 Quads
Engineering Tolerances:+0.20–0.30 mm finishing allowance
Gemstone Details:28 × emerald cut 5.30 × 3.30 mm (8.96 ct)

Pre-Calculated Metal Weights

14K Gold
16.87g
18K Gold
19.85g
Platinum
28.19g
Silver
13.50g

Compatible Software:

Rhino 3DMatrixGoldZBrush

Included Formats:

3DMSTLPNGOBJ

This jewelry CAD design is available for workflows using professional 3D modeling software, and is part of our full jewelry CAD library.

Get Access to This Design & 5,000+ More — €79

Instant Google Drive download link delivered after payment.

Design Overview & Manufacturing Notes

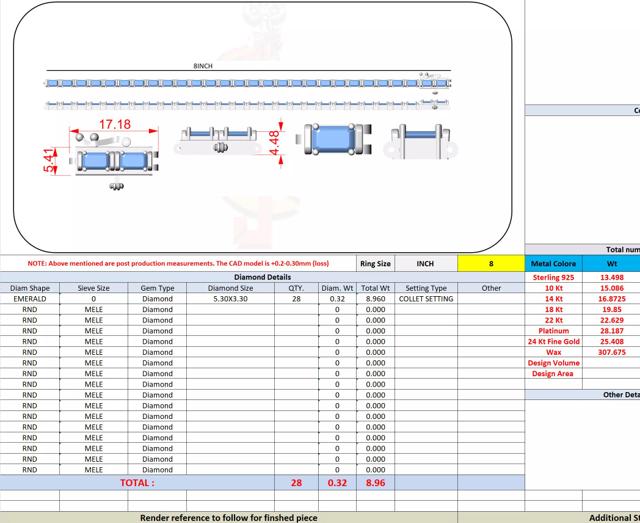

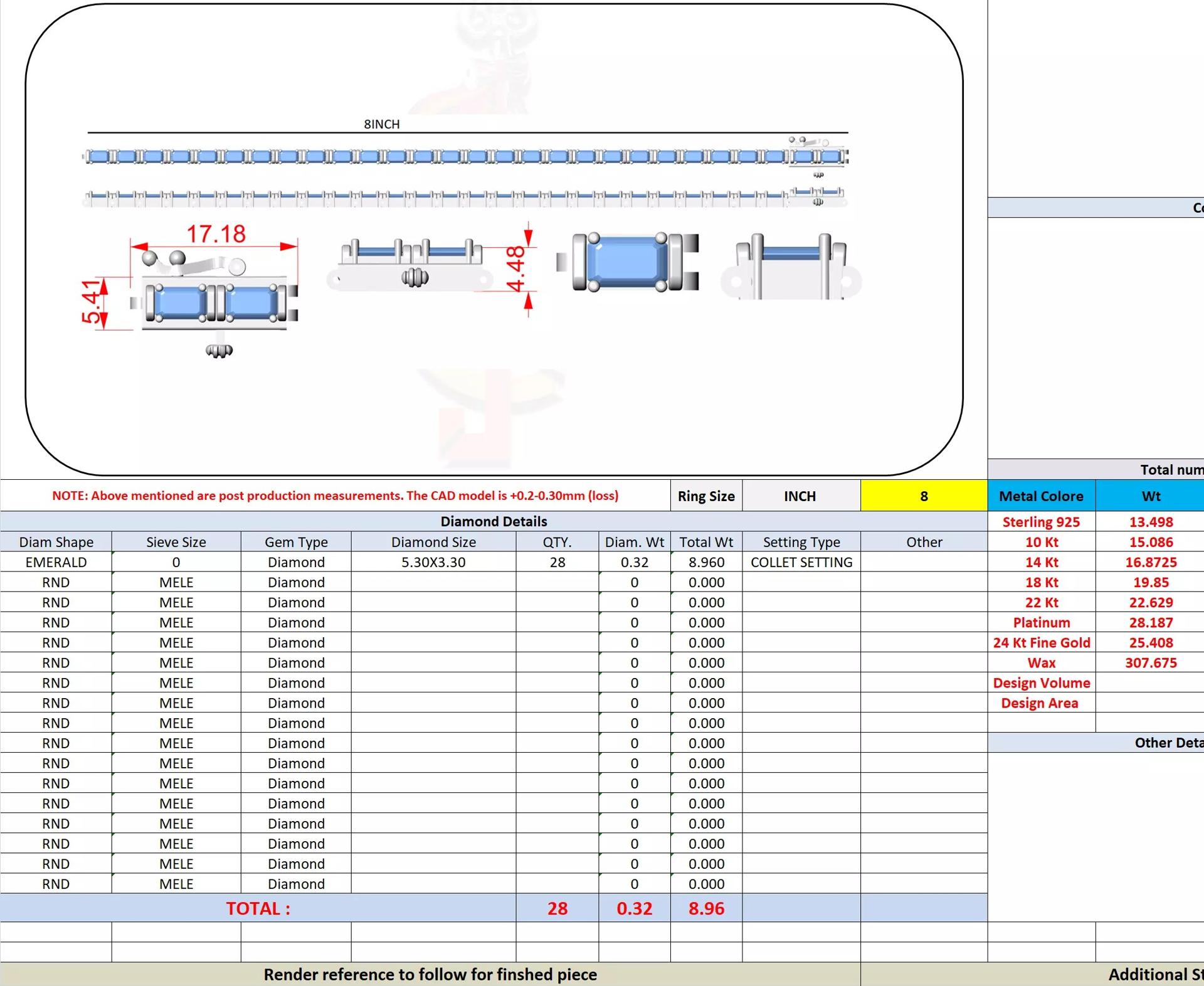

Technical manufacturing blueprint for an 8-inch line bracelet of emerald-cut stones, for MatrixGold and Rhino. The sheet shows the full bracelet length, clasp detail and individual link views with production dimensions (17.18 mm across two links, 5.41 mm wide, 4.48 mm high), a diamond schedule of 28 emerald-cut 5.30 × 3.30 mm stones in collet settings — 8.96 ct in total — and estimated metal weights from sterling silver to platinum. Measurements are post-production; the CAD model carries a +0.20–0.30 mm allowance for finishing loss.
