Rhino 3D Workbench Blueprint CAD Asset - Professional Rings CAD Design
SKU: JDS-RNG-008

Design Gallery Views

Rhino 3D Workbench Blueprint CAD Asset perspective render view 1
Rhino 3D Workbench Blueprint CAD Asset perspective render view 2
Watertight STL Verified
Instant 980GB Access
Pre-Cut Gem Seats
Commercial Rights
Gold Jewelry CAD Collection

Rhino 3D Workbench Blueprint CAD Asset

Technical manufacturing blueprint for a solitaire ring with a pavé shank — dimensions, stone layout and metal weights.

Technical Specifications
File Size:78.5 MB
Polygon Density:148,000 Quads
Engineering Tolerances:+0.20–0.30 mm finishing allowance
Gemstone Details:1 × 6.60 mm round + 37 pavé (1.623 ct total)

Pre-Calculated Metal Weights

14K Gold
2.04g
18K Gold
2.4g
Platinum
3.408g
Silver
1.632g

Included Formats:

3DMSTLPNGOBJ

This jewelry CAD design is available for workflows using professional 3D modeling software, and is part of our full jewelry CAD library.

Get Access to This Design & 5,000+ More — €79

Instant Google Drive download link delivered after payment.

Design Overview & Manufacturing Notes

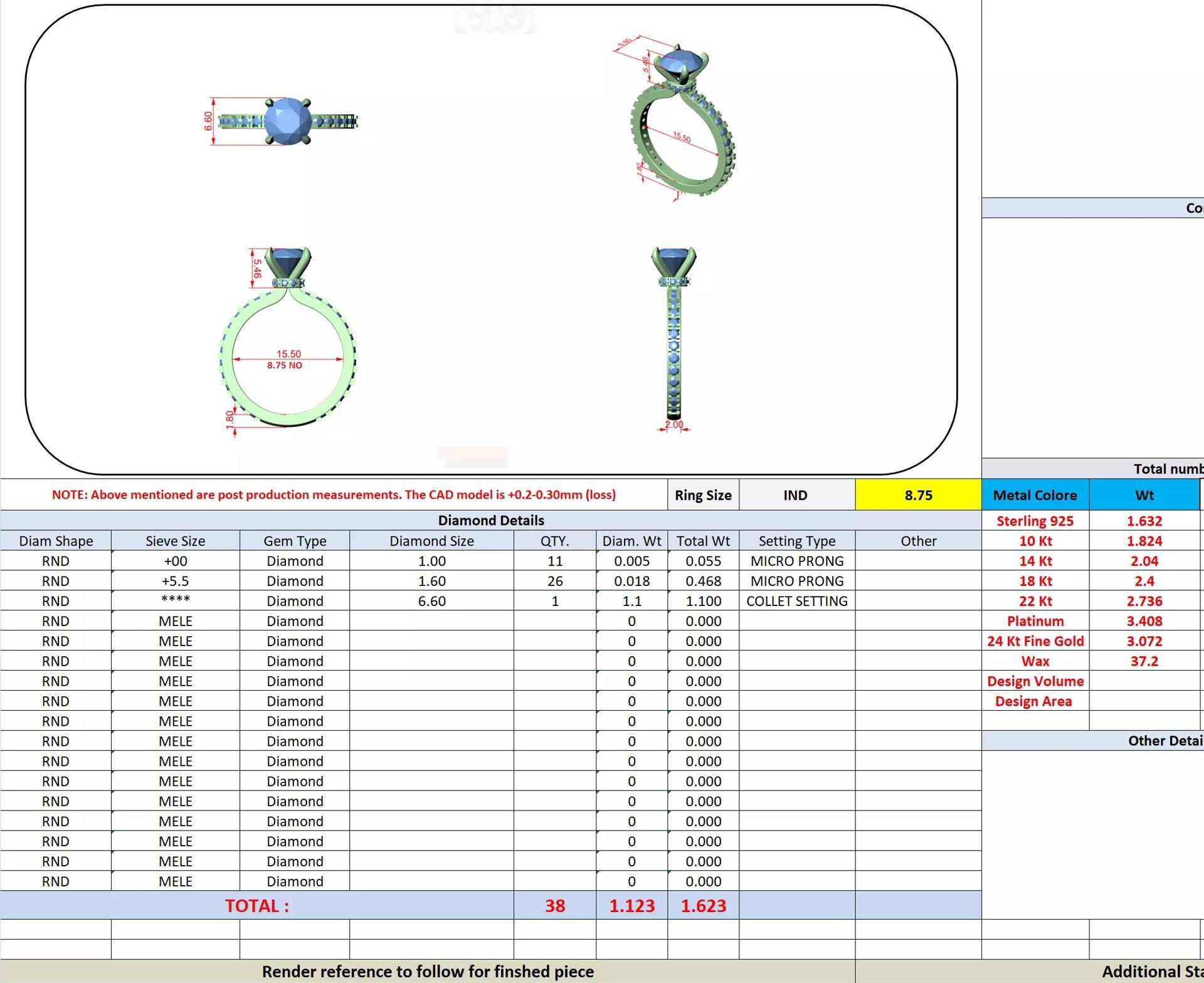

Technical manufacturing blueprint for a four-prong solitaire ring with a micro-pavé shank, drawn for Rhino 3D. The sheet shows top, side and front views with production dimensions (6.60 mm centre stone, 15.50 mm inner diameter, size 8.75 IND), a full diamond schedule — one 6.60 mm round centre stone in a collet setting plus 37 micro-prong side stones, 1.623 ct in total — and estimated metal weights from sterling silver to platinum. Measurements are post-production; the CAD model carries a +0.20–0.30 mm allowance for finishing loss.

Frequently Asked Questions

What file formats are included with this design?

Every design download includes editable Rhino 3D (.3DM) source files, watertight 3D printable (.STL) meshes, 4K transparent (.PNG) render sheets, and 360-degree (.MP4) turntable videos.

Can this design be customized?

Yes. Because the 3DM file retains clean NURBS surfaces and un-trimmed geometry, you can easily alter ring finger sizes, gem seat depths, or prong heights in Rhino 3D, MatrixGold, or JewelCAD.

Which software can open these files?

These files can be opened and edited in Rhino 3D, MatrixGold, Blender, JewelCAD. The exported STL files are universally compatible with all SLA/DLP 3D printer slicer software.
